• Inline Flame Arrestors

Product Details

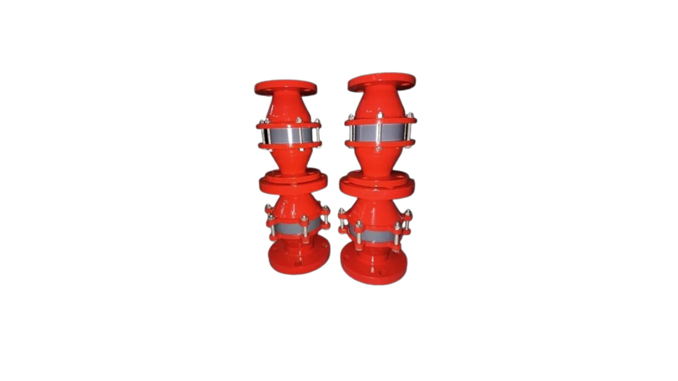

Inline Flame Arrestors

Inline Flame Arrestor is designed to stop flame propagation inside pipelines and process lines carrying flammable gases and vapors. It is installed between pipelines to prevent fire and explosion from traveling through the line and damaging equipment and systems.

It allows gas flow while safely extinguishing flame using a stainless steel flame arresting element.

Applications

  • Gas pipelines
  • Fuel transfer systems
  • Chemical processing units
  • Oil & Gas plants

Features

  • Prevents Flame Entry into Storage Tanks
  • Strong Stainless Steel Flame Element
  • Low Pressure Drop
  • Corrosion Resistant
  • Easy Maintenance
  • Reliable Safety Protection
  • Long Service Life

Product Specification Details

Technical Specification

Parameter Specifications
Product Name Inline Flame Arrestor
Type Deflagration Flame Arrestor
Model Number SFA – 201
Installation Pipeline [Inline]
Size 25NB to 300NB [1″ to 12″]
Pressure Rating Atmospheric / PN 10/ PN 16/ Class 150
Temperature Upto 200 Deg
Design Standard ISO 16852
Body Material WCB/ CS / SS 304 / SS 316/ SS 316L
Flame Element SS Crimped Ribbon / Corruugated Ribbon/ Multi Layer Flame Arresting Element
Mounting Horizontal/ Vertical
Surface Finish Painted / Epoxy / SS Finish
Fasteners High Tensile Steel
End Connection Flanged / Threaded End
Testing Hydrotest / PMI / Third Party Inspection

Extra Equipment Options

Optional Accessories

Guide Wire

Protection Cover

SS Float

Large Scale Board

Pulley Guard
