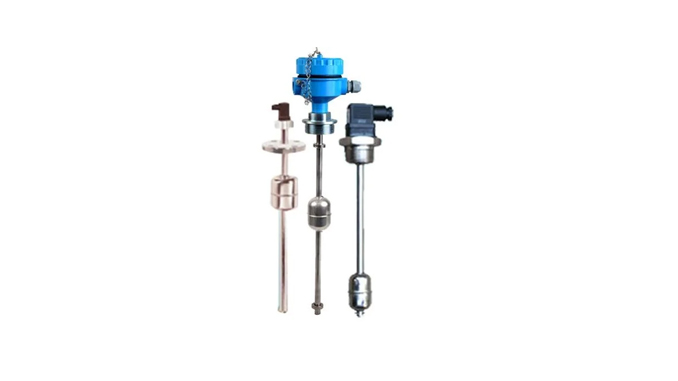

Top Mounted Float Level Switch โ€“ STMLS 1000

Sasthan Engineers provides Top Mounted Level Switch designed for vertical installation on the top of tanks for level monitoring and pump control. It operates using a float assembly that moves with the liquid level and activates the switch.

Top mounted level switches are ideal for high level alarm, low level alarm, and multi-level control applications.

Features

  • Top mounting vertical design
  • Multi-level switching option
  • Accurate level control
  • Strong and durable construction
  • Easy installation and maintenance
  • Suitable for industrial tanks

Applications

  • Water tanks
  • Chemical tanks
  • Storage tanks
  • Process vessels
  • Oil and gas industries
  • Industrial plants

Product Specification Details

Technical Specification

Parameter Specifications
Type Top Mounted Level Switch
Size 1″ to 4″
Mounting Top Mounted
Pressure Rating Upto 10 Kg/cm2
Temperature 200 Deg
Body Material SS 304 / SS 316 / PP
Float Material SS 316 / PP
Switch REED Switch
Switch Rating 5 AMPS 230 V AC
Output NO / NC
End Connection Flanged / Threaded
Stem Length As per Tank Height
Application Water, Oil, Chemicals

Extra Equipment Options

Optional Accessories

Isolation Valve

Drain Valve

Vent Valve

Safety Ball Check

Scale Plate

Mica Shield

Illuminator
