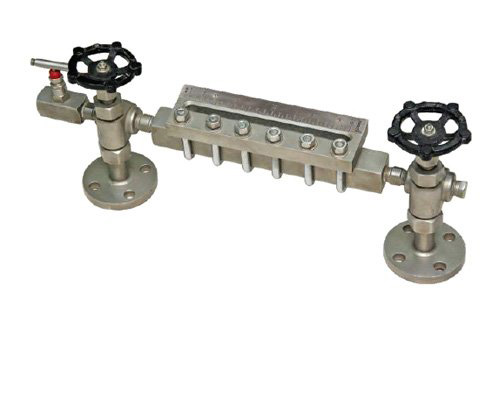

Reflex Level Gauge

Sasthan Reflex Level Gauge is designed for clear liquid level visibility without the need for external lighting. The special prismatic glass reflects light differently in liquid and vapor areas, making the liquid level clearly visible.

It is suitable for medium and high-pressure applications and widely used in industrial boilers and process vessels.

Features

  • Clear level visibility
  • No external lighting required
  • Strong prismatic glass
  • Suitable for high pressure
  • Rugged construction
  • Reliable performance

Applications

  • Boilers
  • Steam systems
  • Process vessels
  • Chemical plants
  • Power plants

Product Specification Details

Technical Specification

Parameter Specifications
Type Reflex Level Gauge
Size Range 1/2″ to 2″
Center to Center 150mm to 6000mm
Pressure Rating Upto 50 Kg/mc2
Temperature Upto 250 Deg
Body Material Carbon Steel / SS 304 / SS 316
Glass Material Reflex Prismatic Glass
End Connection Screwed End / Flanged End
Gasket Graphite / PTFE
Standard DIN / ANSI
Application Steam, Water, Oil, Process Fluids

Extra Equipment Options

Optional Accessories

Isolation Valve

Drain Valve

Vent Valve

Safety Ball Check

Scale Plate

Mica Shield

Illuminator

Extra Equipment Options

Optional Accessories

Isolation Valve

Drain Valve

Vent Valve

Safety Ball Check

Scale Plate

Mica Shield

Illuminator
